Features:

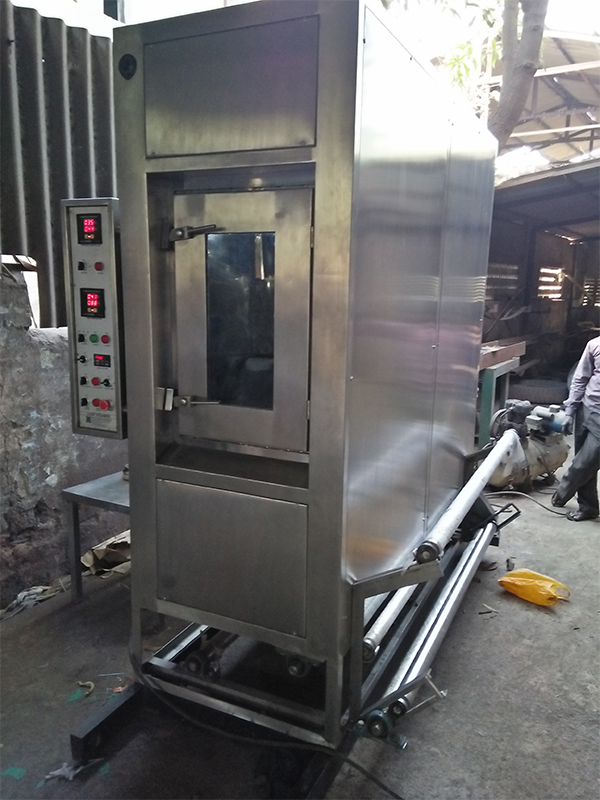

This machine is specially designed for small production requirements of Digital Inkjet Printers. It does not need any external steam supply and hence does not need any elaborate steam generator. In case if steam is available at site, it does have a provision for using external steam.

The Machine is suitable for fixing of dyestuff such as disperse, reactive, pigment etc. on variety of substrates like cotton, polyester, viscose, silk etc. by steaming of fabric for post treatment in Dyeing and Printing by

• Saturated Steaming • Super Heated Steaming • Hot air treatment

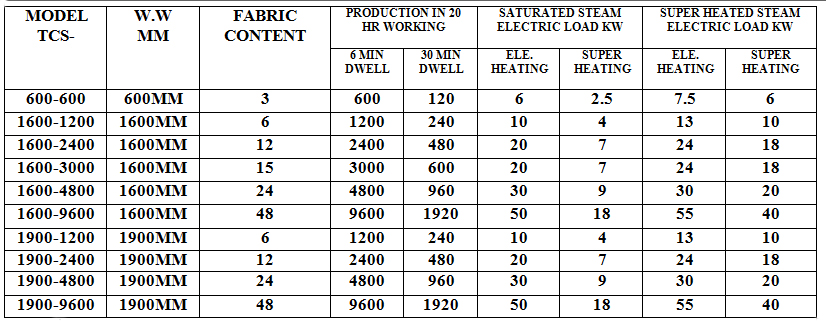

Common Specifications

• Temperature range: 95 deg C to 104 deg C for saturated steaming,
• OPTIONAL: Maximum 185 deg C by super heated steaming with extra cost.Maximum 185 deg C with hot air with extra cost.
• Steam generation : Internal electric heater & external steam option
• Steam superheating: By electrical heating
• Electrical heating control for steam generation: 3 levels of heating Power depending on the process
• Control of the Steamer : Through PID controller.
• Heated Roof and entry slits to prevent moisture condensation
• Variable frequency Drive for speed control.
• Batching rollers at entry and exit.
• Observation Window on the door.
• Rollers: Teflon coated SS 316, all are driven.
• Material of construction : SS 304, SS 316 and powder coated MS for structure
• Electric supply : 415 V, 3 Phase, 50 Hz
