CHARACTERISTIC

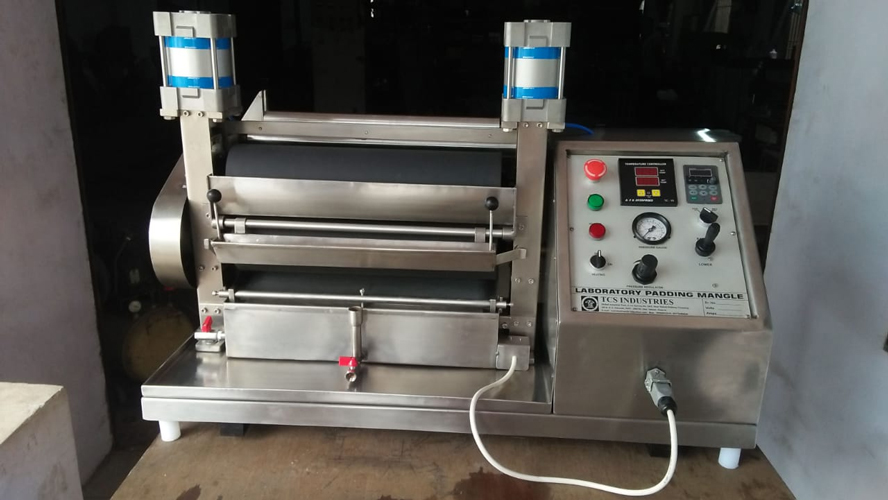

• Versatile machine can be used for dyeing, printing and finishing trials.
• Working width: optional of 300mm, 450mm, 600mm,1000mm,1250mm and 1850mm.
• Automation through Microprocessor Controller (optional).
• For even pressure throughout, pneumatic loading of the bowl.
• Small unheated trough provided for padding a small size samples.
• Nip padding trough available as standard accessories.
• Compensator for use in conjunction with Drying Curing and setting Chamber available as option.
• 3 bowl padding mangle with central bowl of ebonite or stainless steel can also be offered.

Technical Specifications

• Working width : 300mm, 450mm, 600mm
• Material of coating on bowl : synthetic rubber
• Rubber hardness : 65 to 70 shore hardness
• Cloth speed : up to 10 meter / minute.
• Dimensions Approx : L 1030 mmxW650 mmxH790 mm,
• Electrical Supply : 230V, single phase, 50Hz
