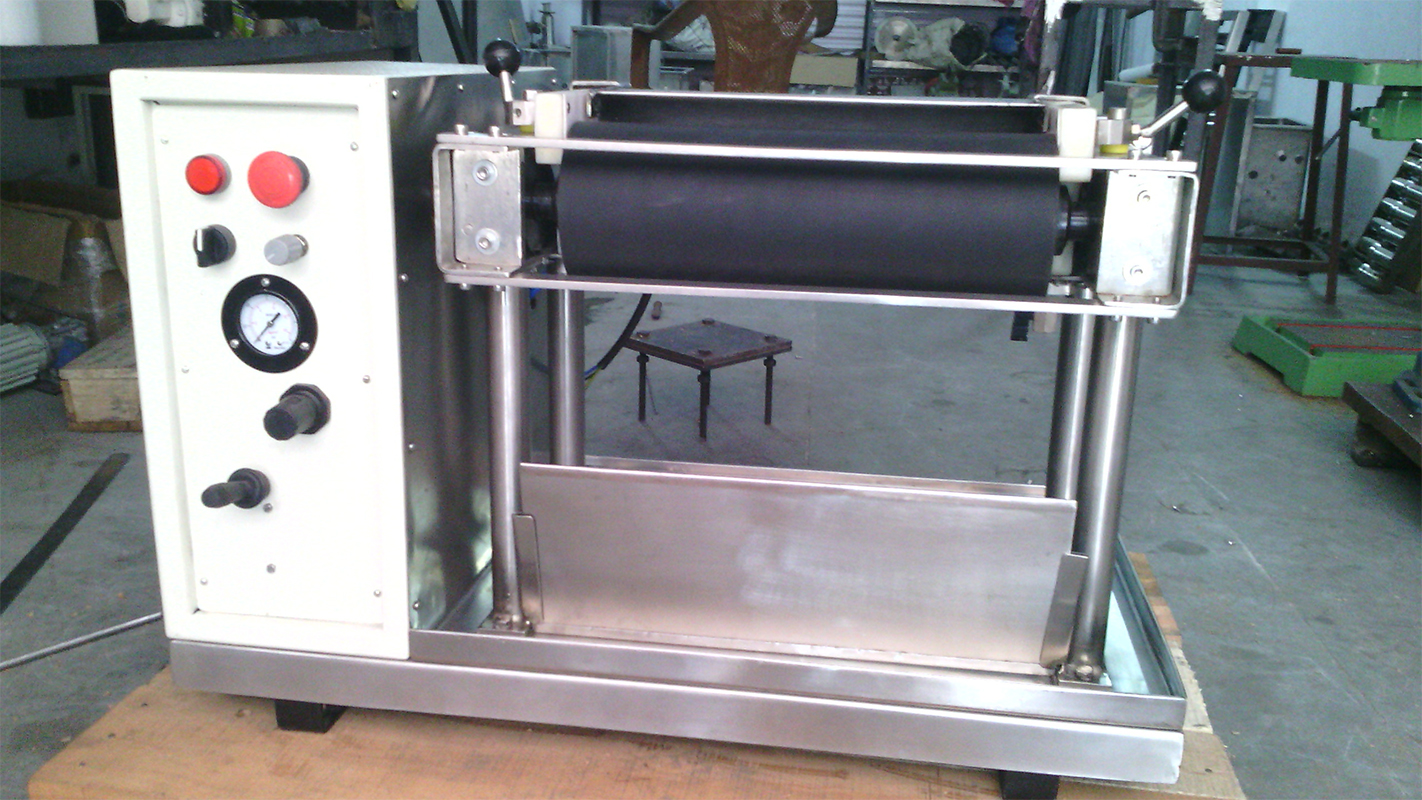

CHARACTERISTIC

• Versatile machine can be used for dyeing, printing and finishing trials.
• Working width: 300mm,450mm,600mm
• For even pressure throughout, pneumatic loading of the bowl.

Technical Specifications

• Working width : 300mm, 450mm, 600mm
• Material of coating on bowl : synthetic rubber
• Rubber hardness : 65 to 70 shore hardness
• Cloth speed : up to 9 meter / minute.
• Dimensions Approx : L 800 mm x W 500 mm x H 500 mm, for 300mm w.w
• Dimensions Approx : L 950 mm x W 500 mm x H 500 mm, for 450mm w.w
• Dimensions Approx : L 1100 mm x W 500 mm x H 500 mm, for 600mm w.w
• Electrical Supply : 230V, single phase, 50Hz
• Net weight 300mm : 85 kgs.
• Net weight 450mm : 105 kgs.
• Net weight 600mm : 135 kgs.
